S-line remote controlled winch

Until a few years ago, only professional operations could afford geared cable winches because of the small production runs and heavy duty design. All this has changed since the introduction of the new Pfanzelt S-line cable winch series. With the S-line cable winch, Pfanzelt now offers geared cable winches especially designed for semi-professional contractors and tree farmers with an attractive price/performance ratio. The design is the same as with the larger models, only the dimensions have been rescaled to match the size of the usually smaller tractors.

S150 geared cable winch
An inexpensive start into the geared cable winch technology is the model S150 with its 5.0 t tractive force.

S160 geared cable winch
For larger tractors and for users who require more tractive power, the S160 model offers a new, powerful mid-range model in the S-line cable winch range.

S172 geared cable winch
The S172 geared cable winch is ideal for larger jobs in farm woodland. The cable winch comes as standard with a 1,800 mm stacking shield.

Interested?

Get more information and request a non-binding offer.

More details on the S-line remote controlled winches

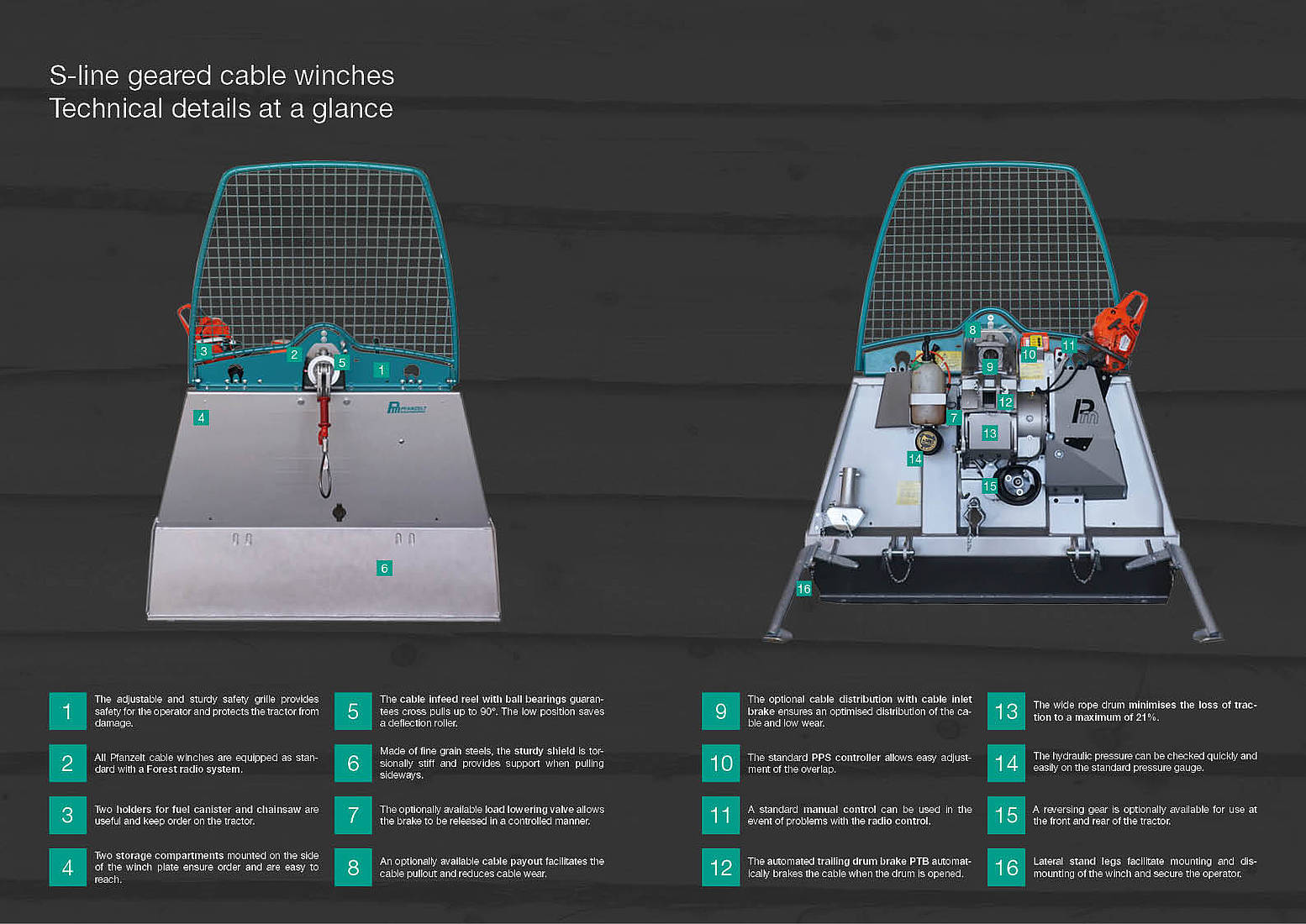

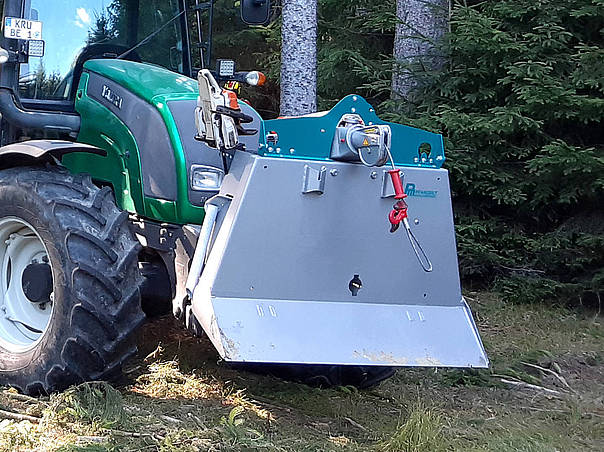

Winch unit with stacking shield

Winch unit

The alignment of the cable drum in the pulling direction enables easy cable payout and ensures low cable wear, as the cable is not fed out and wound in via several rollers in different directions. According to KWF tests, Pfanzelt cable winches have the lowest power requirement of any winch for paying out the cable. Moreover, the cable winch is mounted in an optimum position on the tractor in relation to centre of gravity.



Stacking shield

Pfanzelt S-line geared cable winches are equipped with an especially robust stacking shield made of high strength fine grained steel to create a torsion-resistant box. The resulting wedge form is able to reliably absorb even lateral pulling forces, giving many years of robust service. Laterally actuated parking supports ensure that the cable winch can be conveniently attached or removed the tractor, preventing accidents.

Transmission

The cable winch is driven via the PTO shaft with speeds of 540, 750 or 1000 rpm. From the Cardan shaft, the drive is transmitted via a bevel gear to the precision worm gear immersed in an oil bath. This ensures very quiet running and permanent operating safety.

Multi-disc sintered plate sets are used for exact control of the braking and clutch operations and secure crossover. The complete system is protected by internal mounting.

Minimum tractive power loss

The use of a cable drum with a large core diameter ensures very low tractive force loss from the top to bottom cable layer. According to independent tests by the KWF, the S-line cable winch has a maximum tractive force loss of 21% with a standard cable length. The very low cable infeed height enables simple and comfortable operation without deflection pulley.

PPS Controller

With the Pfanzelt PPS precision controller, which is unique on the market, the cable winch can be adapted to the respective forwarding situation. The operator can rapidly and easily adjust the crossover of the clutch and brake by preselection. This offers maximum operating comfort and the highest degree of working safety.

Cable infeed brake (option)

The cable is always kept taut when drawn in, even if the trunk starts to slip or the cable is loose: all made possible by the Pfanzelt cable infeed brake. A cylinder presses the cable when it is drawn in with a brake roller against the brake block. The cylinder force is selected so that the cable can only be pressed against the brake block when it is in an unloaded state. When the cable is paid out, the brake opens completely.

Cable payout (option)

The Pfanzelt rope payout was developed to facilitate use. The decoiling device installed in the swivel arm of the cable distribution is mechanically driven and hydraulically switched. The cable is firmly pressed against the cable pulley over a large radius by several flexibly suspended pressure rollers. Due to the large contact surface, functionality is ensured despite contamination or cable damage.

PTB automated drum trailing brake

When a cable under tension is released, this often causes untidy winding of the cables on the drum. The PTB new drum trailing brake automatically brakes the drum in such cases, thus ensuring tidy cable winding. Light and smooth cable payout is guaranteed

Load lowering valve (option)

Pfanzelt S-line geared cable winches can be equipped with a load lowering valve. This means that a cable under strain can be gradually released and lowered. This feature is essential for safety felling work In order to prevent disruptions, the cable winch operates with a separate oil circuit with filter unit that is fed via a radial piston pump and operates all hydraulic functions.

Stowage space

Specially designed holders for chainsaws and fuel canisters as well as, in some models provide lots of storage capacity for forestry work.

Wireless remote control as standard

The radio control is standard equipment

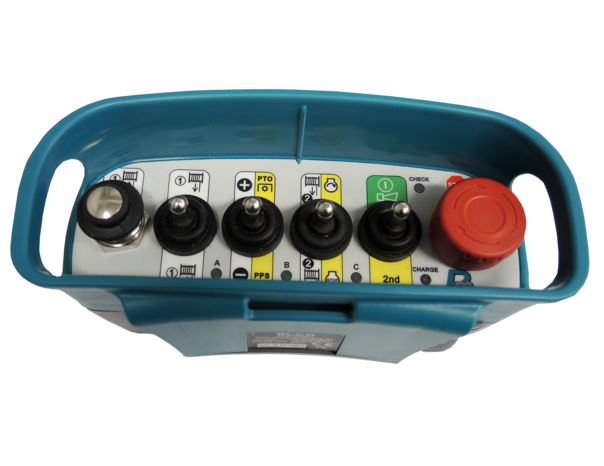

The S-line cable winches are equipped with a radio control system for safe, comfortable, and gentle working. The operator is thus not in the danger zone and can detect obstacles.


The safety update
The new radio control decouples Pull and Release. The command Pull is now activated via a pushbutton.


All functions at a glance

  • Pull (via pushbutton)
  • Release, short release (via rocker arm)
  • infinitely variable motor speed adjustment
  • Emergency stop
  • PPS NEW switchover via radio

Active operator protection (standard)

TUTUM Pro Crush Protection prevents hand crushing and injuries caused by rope damage. This protective mechanism<br/> is only available as standard from Pfanzelt.

Front mounted (option)

Instead of the standard bevel gear, a bevel gear with a second PTO stub with direction of rotation reversal can be provided for front mounting of the winch.

Technical specs

 S150S160S172
Customize your machineConfiguratorConfiguratorConfigurator
Traction in lower cable layer50 kN60 kN72 kN
Traction in upper cable layer40 kN47 kN56 kN

Standard cable lengths
(high density forestry cable with sliding hooks)

Ø 10 mm x 70 mØ 11 mm x 70 m

Ø 12 mm x 60 m

Professional forestry wireless controlRadio system with toggle switch, pushbutton and emergency stop button
Pfanzelt PPS precision controller

Stacking shield width (standard)1,500 mm1,500 mm1,800 mm
Weight (without cable)approx. 510 kgapprox. 540 kgapprox. 630 kg



Accessories






Cable distribution with cable infeed brakeoptionaloptional

optional

Long cable package
(incl. cable distributor with cable infeed brake)

optional
Ø 10 mm x 110 m
optional
Ø 11 mm x 100 m

optional
Ø 12 mm x 90 m

Cable payoutoptionaloptional

optional

PTB automated drum trailing brakeoptionaloptionaloptional
Load lowering valveoptionaloptional

optional

Bevel gear for front attachmentoptionaloptional

optional

Shield width 1,800 mmoptional

Shield width 2,000 mmoptional

optional

Shield width 2,200 mmoptional

optional

Retrieval winch for use on steep slopesoptionaloptionaloptional
