The Pfanzelt K Trac with its 4 implement attachment points is a genuine year-round vehicle for the municipal depot and for use in landscape and environmental care. The arrangement of the individual attachment points and the drive system means that the vehicle cab can be located in the middle of the vehicle. The Pfanzelt XXL cab creates an operator position with an optimum view of the vehicle and attached equipment. Behind the cab, the K Trac concept offers plenty of space, which can be used for mowing booms, loading cranes or a flat bed. A large gritter can also be installed here.
Fast | continuously variable gearbox variaDRIVE (70 km/h)
Manoeuvrable | combined 4-wheel-steering
Powerful | 205, 253 or 292 hp/ 200 l hydraulic power
Agile | Combined 4-wheel steering
Flexible | 4 changeable attachment and mounting spaces
Comfortable | pneumatically suspended XXL comfort cab with rotatable driver’s platform or full-fledged passenger seat
All-season vehicle for road maintenance
As different as the seasons, so are the uses in these periods. With its 4 attachment and mounting bays, the K Trac masters everything from winter service, tree maintenance, pruning to mowing work.
Manoeuvrable and fast
Thanks to its all-wheel steering, the new K Trac is a manoeuvrable implement carrier that doesn't shy away from narrow alleys and small-structured inner cities. With the possible 80 km/h licence, on the other hand, motorway journeys are also possible at high speed.
XXL comfort cab
The pneumatically-sprung, large-volume cab developed by Pfanzelt enables quiet and comfortable work with perfect allround view. A new concept for noise insulation enables quiet and vibration-dampened operation, especially at high engine speeds. Over 7 m2 of glass area provide optimum visibility of the working environment and increase work safety.
Rotatable operator stand or two-man cab
Depending on the area of application, you can choose between two variants of the cab. A version with a rotatable operator stand or a version with two air-sprung seats is available. With the second variant, it is still possible to rotate the seat slightly in order to have an optimal view when working in the roadside greenery. The driver finds a relaxed and ergonomic seating position in the operator's seat. Optionally, it can be rotated electrically by 340°. All controls, the pedals and the touchscreen terminal rotate together with the seat, always within easy reach.
Areas of application

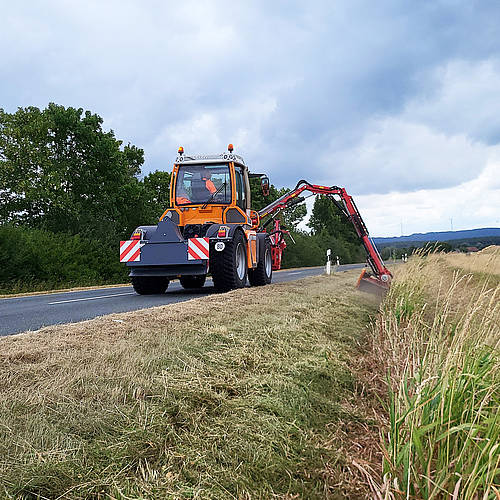

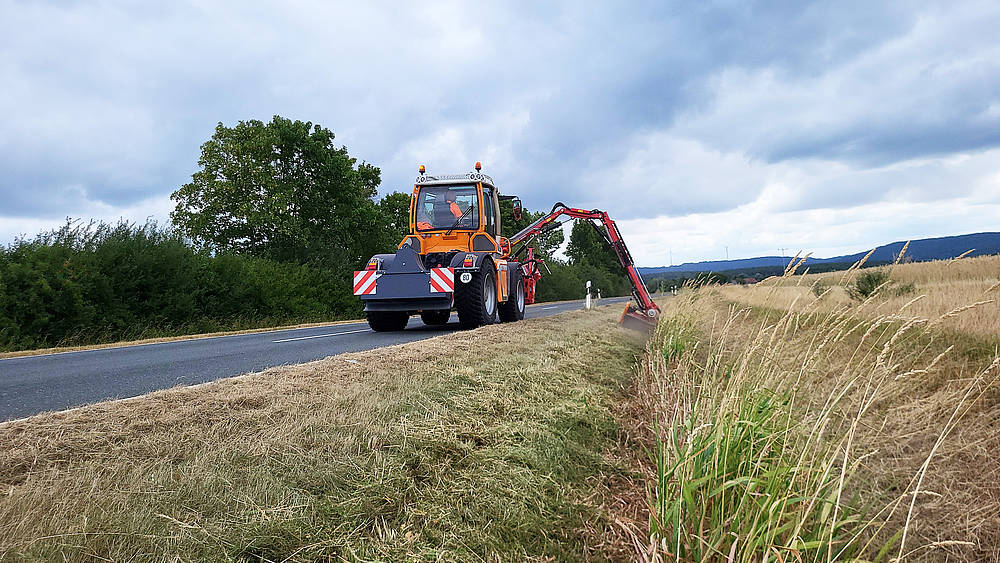

Landscape maintenance

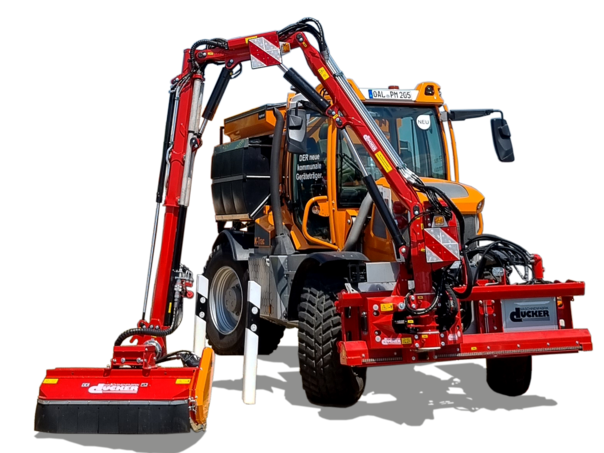

The attachment bay at the front and the mounting bay at the rear enable equipment with different configurations for hedge trimming and mowing. Thanks to the swivelling operator stand, the driver always has an optimal view of the implements.
In spring, it can be used in combination with a salt/brine spreader and a boom for hedge trimming.
Crane operation and transport
The equipment with a crane in the rear mounting bay opens up new possibilities in combination with the XXL comfort cab with rotatable operator stand. The crane can be designed as a mower boom, a combination crane or a loading crane. Different applications are possible depending on the crane type. In combination with the 80 km/h licence, the K Trac becomes a fast crane transport vehicle.
Snow blowers
For winter use, the K Trac can be equipped with a snow blower at the front and rear. Operation of the snow blower at the rear enables a new level of working comfort. The K Trac and snow blower are intuitively operated and driven from the rotatable driver’s stand in a relaxed and comfortable manner.
Winter service
In winter service, the K Trac impresses with its compact frontend dimensions and the large rear mounting bay for salt and brine spreaders.
160 ltr./min, 210 bar (optional 200 ltr./min, 210 bar)
Front/rear power lifts
optional
Control valves
2 DW elektr. Heck (optional: zusätzlich 2 DW elektr. prop. Front und Heck)
LS connexion
Rear power bracket (LS connexion)
Dimensions
Empty weight
8.200 - 9.200 kg*
Permitted total weight
14.000 kg (optional 17.000 kg)
Permissible axle load
6.000 kg front | 11.500 kg rear
Bearing load
2,000 kg automatic trailer coupling | 3,000 kg ball head with sliding carriage
Dimensions
4,990 mm long | 2,400 mm wide (standard) | 3,220 mm high* Minimum width: 2,250mm | maximum width: 2,800 mm
Ground clearance
540 mm*
Wheelbase
3.325 mm
Weight distribution
VA 55 %, HA 45 %
Turning circle
14.6 m front-axle steering | 10.50 m all-wheel steering (with standard tyres)
Mounting space
Width up to approx. 1,010 mm inside, above the mudguard up to max. outside width, Height up to approx. 2,820 mm depending on tyres, Length approx. 2,000 mm, also more depending on overhang
Tyres
400/80 R 28 – 440/80 R 30 Nokian TRI 2 (standard)
* Values depend on equipment
Configure your new K Trac
Select your model and desired accessories. You will receive the price for your desired configuration directly online. Use the configurator to request your personal quote.
If you have any questions, please do not hesitate to contact our sales consultants. FIND YOUR CONTACT PERSON
160 ltr./min, 210 bar (optional 200 ltr./min, 210 bar)
Front/rear power lifts
optional
Control valves
2 DW elektr. Heck (optional: zusätzlich 2 DW elektr. prop. Front und Heck)
LS connexion
Power-Bejond (LS-Anschluss) Heck
Dimensions
Empty weight
8,200 – 9,200 kg*
Permitted total weight
14,000 kg (optional 17,000 kg)
Permissible axle load
6,000 kg front | 11,500 kg rear
Bearing load
2,000 kg automatic trailer coupling | 3,000 kg ball head with sliding carriage
Dimensions
4,990 mm long | 2,400 mm wide (standard) | 3,220 mm high* Minimum width: 2,250mm | maximum width: 2,800 mm
Ground clearance
540 mm*
Wheelbase
3,325 mm
Weight distribution
VA 55 %, HA 45 %
Turning circle
14.6 m front-axle steering | 10.50 m all-wheel steering (with standard tyres)
Mounting space
Width up to approx. 1,010 mm inside, above the mudguard up to max. outside width, Height up to approx. 2,820 mm depending on tyres, Length approx. 2,000 mm, also more depending on overhang
160 ltr./min, 210 bar (optional 200 ltr./min, 210 bar)
Front/rear power lifts
optional
Control valves
2 DW elektr. Heck (optional: zusätzlich 2 DW elektr. prop. Front und Heck)
LS connexion
Power-Bejond (LS-Anschluss) Heck
Dimensions
Empty weight
8,200–9,200 kg*
Permitted total weight
14,000 kg (optional 17,000 kg)
Permissible axle load
6,000 kg front | 11,500 kg rear
Bearing load
2,000 kg automatic trailer coupling | 3,000 kg ball head with sliding carriage
Dimensions
4,990 mm long | 2,400 mm wide (standard) | 3,220 mm high* Minimum width: 2,250mm | maximum width: 2,800 mm
Ground clearance
540 mm*
Wheelbase
3,325 mm
Weight distribution
VA 55 %, HA 45 %
Turning circle
14.6 m front-axle steering | 10.50 m all-wheel steering (with standard tyres)
Mounting space
Width up to approx. 1,010 mm inside, above the mudguard up to max. outside width, Height up to approx. 2,820 mm depending on tyres, Length approx. 2,000 mm, also more depending on overhang
160 ltr./min, 210 bar (optional 200 ltr./min, 210 bar)
Front/rear power lifts
optional
Control valves
2 DW elektr. Heck (optional: zusätzlich 2 DW elektr. prop. Front und Heck)
LS connexion
Power-Bejond (LS-Anschluss) Heck
Dimensions
Empty weight
8,200–9,200 kg*
Permitted total weight
14,000 kg (optional 17,000 kg)
Permissible axle load
6,000 kg front | 11,500 kg rear
Bearing load
2,000 kg automatic trailer coupling | 3,000 kg ball head with sliding carriage
Dimensions
4,990 mm long | 2,400 mm wide (standard) | 3,220 mm high* Minimum width: 2,250mm | maximum width: 2,800 mm
Ground clearance
540 mm*
Wheelbase
3,325 mm
Weight distribution
VA 55 %, HA 45 %
Turning circle
14.6 m front-axle steering | 10.50 m all-wheel steering (with standard tyres)
Mounting space
Width up to approx. 1,010 mm inside, above the mudguard up to max. outside width, Height up to approx. 2,820 mm depending on tyres, Length approx. 2,000 mm, also more depending on overhang
Tyres
400/80 R 28 – 440/80 R 30 Nokian TRI 2 (standard)
* Values depend on equipment
Accessories
Open itemsClose items
Name
Select
Driving speed 0 – 90 km/h (instead. series 70 km/h)
Hydraulic engine brake
mit separatem Ölkühler (40 KW)
Preheating kit (cooling water, gearbox oil and hydraulic oil)
Special colour subject to RAL possibilities
Accessories rear mounting space
Open itemsClose items
Name
Select
Rear power lift
Rear PTO (540/ 540 ECO/ 1,000 rpm)
Rear view camera system
Hydraulic top link Cat II/III
Ball coupling K80 in moving carrier plate
Ball coupling K80 fixed attachment
24 V ABS socket for trailers
Accessories front mounting space
Open itemsClose items
Name
Select
Municipal plate (VSS plate)
Front power lift
Front PTO 1,000 rpm
Front PTO offset, max. 1,000 rpm
Front camera system
7-pin socket
Stoll front loader cantilever
Front loader Stoll type Robust FZ 46-33.1
Swing arm including quick-change frame flange brackets (Euro standard) for lifting and pressing, hydraulic device control Selecto 3 max. lift height 4,550 mm Lifting capacity at the bottom 3,320 kg Lifting capacity at the top 2,590 kg
Accessories hydraulics
Open itemsClose items
Name
Select
Hydraulic system with axial piston adjustment pump 200 l/210 bar
Dual hydraulic circuit
Pmax 350 bar, Qmax 180 l
Additional double acting control valve in the front 2/1
Additional double acting control valve in the front 2/2
Pressureless return in the front
Additional double acting control valve in the rear 1/3
Additional double acting control valve in the rear 1/4
Pressureless return in the rear
Additional double acting control valve in the middle 2 x
Biodegradable oil in the hydraulic system
Accessories cab
Open itemsClose items
Name
Select
Climate-controlled driver’s seat
Rotatable
instead of standard: driver’s seat and suspended co-driver’s seat
Beacon light on the left
Beacon light on the right
LED-Headlight integrated in the cabin A-column
LED-Headlight integrated in the cabin C-column
Standard signal socket in the rear of the cabin
Polycarbonate side window on the left
Polycarbonate side window on the right
Polycarbonate door left
Polycarbonate door right
Polycarbonate rear window
Polycarbonate rear window pane, three-ply
Polycarbonate side window pane, left, two-ply
Polycarbonate side window pane, right, two-ply
Polycarbonate door pane, left, two-ply
Polycarbonate door pane right, two-ply
Tyres
Open itemsClose items
Name
Select
Tyre equipment standard: 440/80 R 30 - 400/80 R 28 Nokian TRI 2
Front: 400/80 R 28 Loadindex 146 D Rear: 440/80 R 30 Loadindex 153 D Nokian TRI 2 Front axle burden: 6.000 kg Rear axle burden: 7.300 kg Gross vehicle weight at 65 km/h: 13.300 kg
Tyre equipment 1: 540/65 R 30 - 480/65 R 28 Nokian TRI 2
Front: 480/65 R 28 Loadindex 149 D Rear: 540/65 R 30 Loadindex 156 D Nokian TRI 2 Front axle burden: 6.500 kg Rear axle burden: 8.000 kg Gross vehicle weight at 65 km/h: 14.500 kg
Tyre equipment 2: 540/65 R 30 - 480/65 R 28 Nokian Ground King
Front: 480/65 R 28 Loadindex 148 D Rear: 540/65 R30 Loadindex 155 D Nokian Ground King Front axle burden: 6.300 kg Rear axle burden: 7.750 kg Gross vehicle weight at 65 km/h: 14.050 kg
Tyre equipment 3: 445/95 R 25, 385/95 R 25 BKT Airomax AM 27
Front: 385/95 R 25 Loadindex 170 F Rear: 445/95 R 25 Loadindex 174 F BKT Airomax AM 27 Front axle burden: 6.000 kg per wheel Rear axle burden: 14.100 kg per wheel Gross vehicle weight at 80 km/h: 17.000 kg
Tyre equipment 4: 525/80 R 25, 385/95 R 25 BKT Airomax AM 27
Front: 385/95 R 25 Loadindex 170 F Rear: 525/80 R 25 Loadindex 176 F BKT Airomax AM 27 Front axle burden: 6.000 kg per wheel Rear axle burden: 14.100 kg per wheel Gross vehicle weight at 80 km/h: 17.000 kg
Tyre equipment 5: 445/95 R 25, 385/95 R 25 Michelin X Snoplus
Front: 385/95 R 25 Loadindex Rear: 445/95 R 25 Loadindex Michelin X Snoplus Front axle burden: 4.950 kg per wheel at 9 bar, 4.086 kg per wheel at 5 bar Rear axle burden: 6.000 kg per wheel at 9 bar, 5.400 kg per wheel at 8 bar Gross vehicle weight at 80 km/h: 17.000 kg
Accessories
Open itemsClose items
Name
Select
Driving speed 0 – 90 km/h (instead. series 70 km/h)
Hydraulic engine brake
mit separatem Ölkühler (40 KW)
Preheating kit (cooling water, gearbox oil and hydraulic oil)
Special colour subject to RAL possibilities
Accessories rear mounting space
Open itemsClose items
Name
Select
Rear power lift
Rear PTO (540/ 540 ECO/ 1,000 rpm)
Rear view camera system
Hydraulic top link Cat II/III
Ball coupling K80 in moving carrier plate
Ball coupling K80 fixed attachment
24 V ABS socket for trailers
Accessories front mounting space
Open itemsClose items
Name
Select
Municipal plate (VSS plate)
Front power lift
Front PTO 1,000 rpm
Front PTO offset, max. 1,000 rpm
Front camera system
7-pin socket
Stoll front loader cantilever
Front loader Stoll type Robust FZ 46-33.1
Swing arm including quick-change frame flange brackets (Euro standard) for lifting and pressing, hydraulic device control Selecto 3 max. lift height 4,550 mm Lifting capacity at the bottom 3,320 kg Lifting capacity at the top 2,590 kg
Accessories hydraulics
Open itemsClose items
Name
Select
Hydraulic system with axial piston adjustment pump 200 l/210 bar
Dual hydraulic circuit
Pmax 350 bar, Qmax 180 l
Additional double acting control valve in the front 2/1
Additional double acting control valve in the front 2/2
Pressureless return in the front
Additional double acting control valve in the rear 1/3
Additional double acting control valve in the rear 1/4
Pressureless return in the rear
Additional double acting control valve in the middle 2 x
Biodegradable oil in the hydraulic system
Accessories cab
Open itemsClose items
Name
Select
Klimatisierter Fahrersitz
Fahrersitz drehbar
statt Serie: Fahrersitz und gefederter Beifahrersitz
Beacon light on the left
Beacon light on the right
LED-Headlight integrated in the cabin A-column
LED-Headlight integrated in the cabin C-column
Standard signal socket in the rear of the cabin
Polycarbonate side window on the left
Polycarbonate side window on the right
Polycarbonate door left
Polycarbonate door right
Polycarbonate rear window
Polycarbonate side window pane, left, two-ply
Polycarbonate rear window pane, three-ply
Polycarbonate side window pane, right, two-ply
Polycarbonate door pane, left, two-ply
Polycarbonate door pane right, two-ply
Tyres
Open itemsClose items
Name
Select
Tyre equipment standard: 440/80 R 30 - 400/80 R 28 Nokian TRI 2
Front: 400/80 R 28 Loadindex 146 D Rear: 440/80 R 30 Loadindex 153 D Nokian TRI 2 Front axle burden: 6.000 kg Rear axle burden: 7.300 kg Gross vehicle weight at 65 km/h: 13.300 kg
Tyre equipment 1: 540/65 R 30 - 480/65 R 28 Nokian TRI 2
Front: 480/65 R 28 Loadindex 149 D Rear: 540/65 R 30 Loadindex 156 D Nokian TRI 2 Front axle burden: 6.500 kg Rear axle burden: 8.000 kg Gross vehicle weight at 65 km/h: 14.500 kg
Tyre equipment 2: 540/65 R 30 - 480/65 R 28 Nokian Ground King
Front: 480/65 R 28 Loadindex 148 D Rear: 540/65 R30 Loadindex 155 D Nokian Ground King Front axle burden: 6.300 kg Rear axle burden: 7.750 kg Gross vehicle weight at 65 km/h: 14.050 kg
Tyre equipment 3: 445/95 R 25, 385/95 R 25 BKT Airomax AM 27
Front: 385/95 R 25 Loadindex 170 F Rear: 445/95 R 25 Loadindex 174 F BKT Airomax AM 27 Front axle burden: 6.000 kg per wheel Rear axle burden: 14.100 kg per wheel Gross vehicle weight at 80 km/h: 17.000 kg
Tyre equipment 4: 525/80 R 25, 385/95 R 25 BKT Airomax AM 27
Front: 385/95 R 25 Loadindex 170 F Rear: 525/80 R 25 Loadindex 176 F BKT Airomax AM 27 Front axle burden: 6.000 kg per wheel Rear axle burden: 14.100 kg per wheel Gross vehicle weight at 80 km/h: 17.000 kg
Tyre equipment 5: 445/95 R 25, 385/95 R 25 Michelin X Snoplus
Front: 385/95 R 25 Loadindex Rear: 445/95 R 25 Loadindex Michelin X Snoplus Front axle burden: 4.950 kg per wheel at 9 bar, 4.086 kg per wheel at 5 bar Rear axle burden: 6.000 kg per wheel at 9 bar, 5.400 kg per wheel at 8 bar Gross vehicle weight at 80 km/h: 17.000 kg
Accessories
Open itemsClose items
Name
Select
Driving speed 0 – 90 km/h (instead. series 70 km/h)
Hydraulic engine brake
Preheating kit (cooling water, gearbox oil and hydraulic oil)
Special colour subject to RAL possibilities
Accessories rear mounting space
Open itemsClose items
Name
Select
Rear power lift
Heckzapfwelle (540/ 540 ECO/ 1.000 U/min.)
Rear view camera system
Hydraulic top link Cat II/III
Ball coupling K80 in moving carrier plate
Ball coupling K80 fixed attachment
24 V ABS socket for trailers
Accessories front mounting space
Open itemsClose items
Name
Select
Municipal plate (VSS plate)
Front power lift
Front PTO 1,000 rpm
Front PTO offset, max. 1,000 rpm
Front camera system
7-pin socket
Stoll front loader cantilever
Front loader Stoll type Robust FZ 44-33.1
Swing arm including quick-change frame flange brackets (Euro standard) for lifting and pressing, hydraulic device control Selecto 3 max. lift height 4,550 mm Lifting capacity at the bottom 3,320 kg Lifting capacity at the top 2,590 kg
Accessories hydraulics
Open itemsClose items
Name
Select
Hydraulic system with axial piston adjustment pump 200 l/210 bar
Dual hydraulic circuit
Pmax 350 bar, Qmax 180 l
Additional double acting control valve in the front 2/1
Additional double acting control valve in the front 2/2
Pressureless return in the front
Additional double acting control valve in the rear 1/3
Additional double acting control valve in the rear 1/4
Pressureless return in the rear
Additional double acting control valve in the middle 2 x
Biodegradable oil in the hydraulic system
Accessories cab
Open itemsClose items
Name
Select
Climate-controlled driver’s seat
Rotatable
instead of standard: driver’s seat and suspended co-driver’s seat
Beacon light on the left
Beacon light on the right
LED-Headlight integrated in the cabin A-column
LED-Headlight integrated in the cabin C-column
Standard signal socket in the rear of the cabin
Polycarbonate side window on the left
Polycarbonate side window on the right
Polycarbonate door left
Polycarbonate door right
Polycarbonate rear window
Polycarbonate side window pane, left, two-ply
Polycarbonate rear window pane, three-ply
Polycarbonate side window pane, right, two-ply
Polycarbonate door pane, left, two-ply
Polycarbonate door pane right, two-ply
Tyres
Open itemsClose items
Name
Select
Tyre equipment standard: 440/80 R 30 - 400/80 R 28 Nokian TRI 2
Front: 400/80 R 28 Loadindex 146 D Rear: 440/80 R 30 Loadindex 153 D Nokian TRI 2 Front axle burden: 6.000 kg Rear axle burden: 7.300 kg Gross vehicle weight at 65 km/h: 13.300 kg
Tyre equipment 1: 540/65 R 30 - 480/65 R 28 Nokian TRI 2
Front: 480/65 R 28 Loadindex 149 D Rear: 540/65 R 30 Loadindex 156 D Nokian TRI 2 Front axle burden: 6.500 kg Rear axle burden: 8.000 kg Gross vehicle weight at 65 km/h: 14.500 kg
Tyre equipment 2: 540/65 R 30 - 480/65 R 28 Nokian Ground King
Front: 480/65 R 28 Loadindex 148 D Rear: 540/65 R30 Loadindex 155 D Nokian Ground King Front axle burden: 6.300 kg Rear axle burden: 7.750 kg Gross vehicle weight at 65 km/h: 14.050 kg
Tyre equipment 3: 445/95 R 25, 385/95 R 25 BKT Airomax AM 27
Front: 385/95 R 25 Loadindex 170 F Rear: 445/95 R 25 Loadindex 174 F BKT Airomax AM 27 Front axle burden: 6.000 kg per wheel Rear axle burden: 14.100 kg per wheel Gross vehicle weight at 80 km/h: 17.000 kg
Tyre equipment 4: 525/80 R 25, 385/95 R 25 BKT Airomax AM 27
Front: 385/95 R 25 Loadindex 170 F Rear: 525/80 R 25 Loadindex 176 F BKT Airomax AM 27 Front axle burden: 6.000 kg per wheel Rear axle burden: 14.100 kg per wheel Gross vehicle weight at 80 km/h: 17.000 kg
Tyre equipment 5: 445/95 R 25, 385/95 R 25 Michelin X Snoplus
Front: 385/95 R 25 Loadindex Rear: 445/95 R 25 Loadindex Michelin X Snoplus Front axle burden: 4.950 kg per wheel at 9 bar, 4.086 kg per wheel at 5 bar Rear axle burden: 6.000 kg per wheel at 9 bar, 5.400 kg per wheel at 8 bar Gross vehicle weight at 80 km/h: 17.000 kg

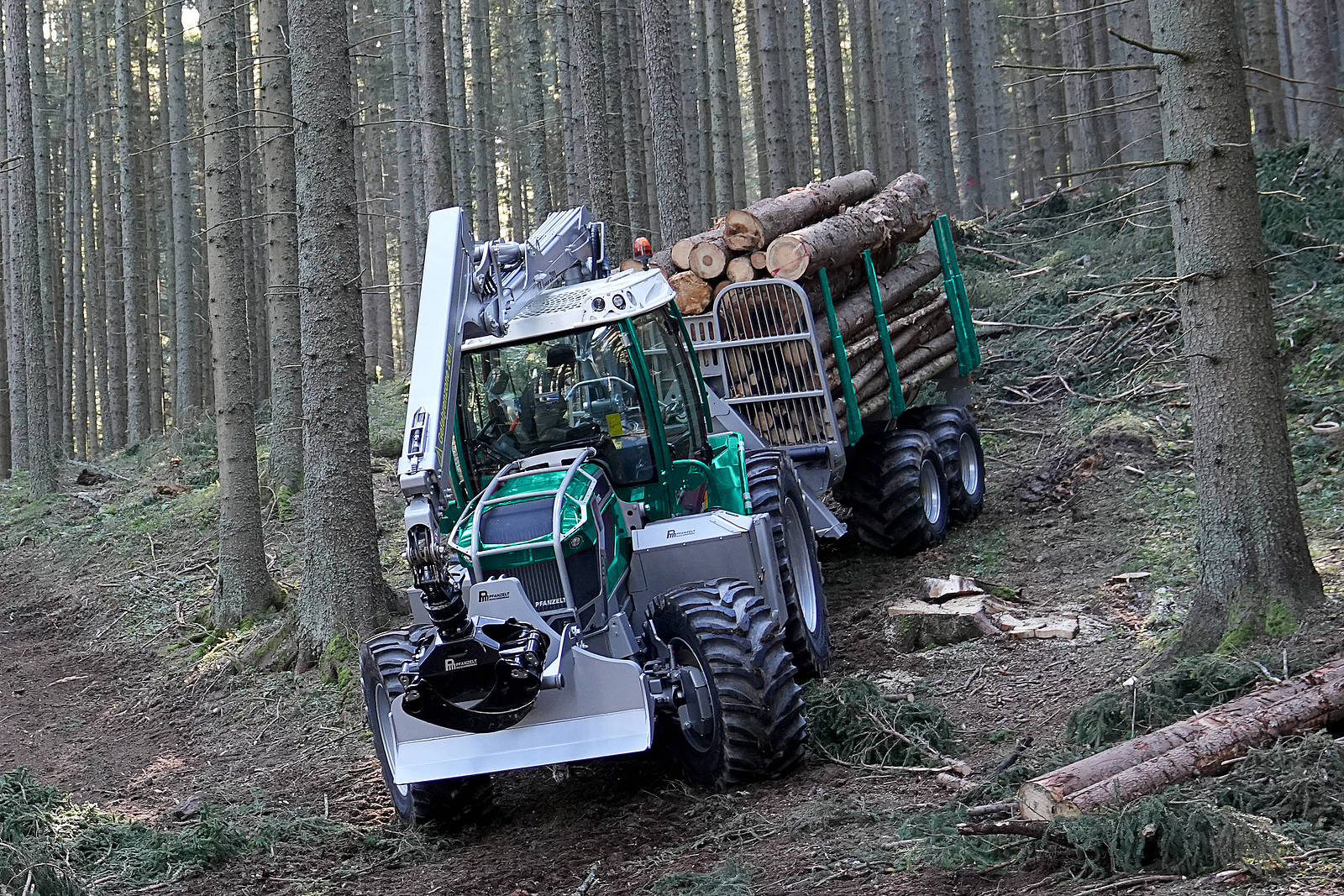

The Pfanzelt Pm Trac, thanks to its unique vehicle design. is optimised for combined service in agriculture and forestry as well as in landscape management.
