Radio-controlled equipment carrier Moritz for alpine tourism
In alpine tourism, every detail counts: safety, sustainability, and efficient maintenance infrastructure are essential.
The remote-controlled Moritz carrier from Pfanzelt is exactly the right machine for these challenges. Whether creating or renovating hiking and biking trails, maintaining ski slopes or securing infrastructure routes, Moritz impresses with its compact design, ground-friendly operation and versatility.
With a wide range of attachments, the Moritz is the ideal tool for demanding applications on steep slopes. Thanks to a traction cable winch with a cable length of up to 1,000 m, it can safely and efficiently master even exposed slopes – all remotely controlled, precisely and with minimal ground impact.
A helper made for the mountains.
Trail construction/renovation
Hiking trail renovation
Ski slope maintenance in summer
Slope preparation

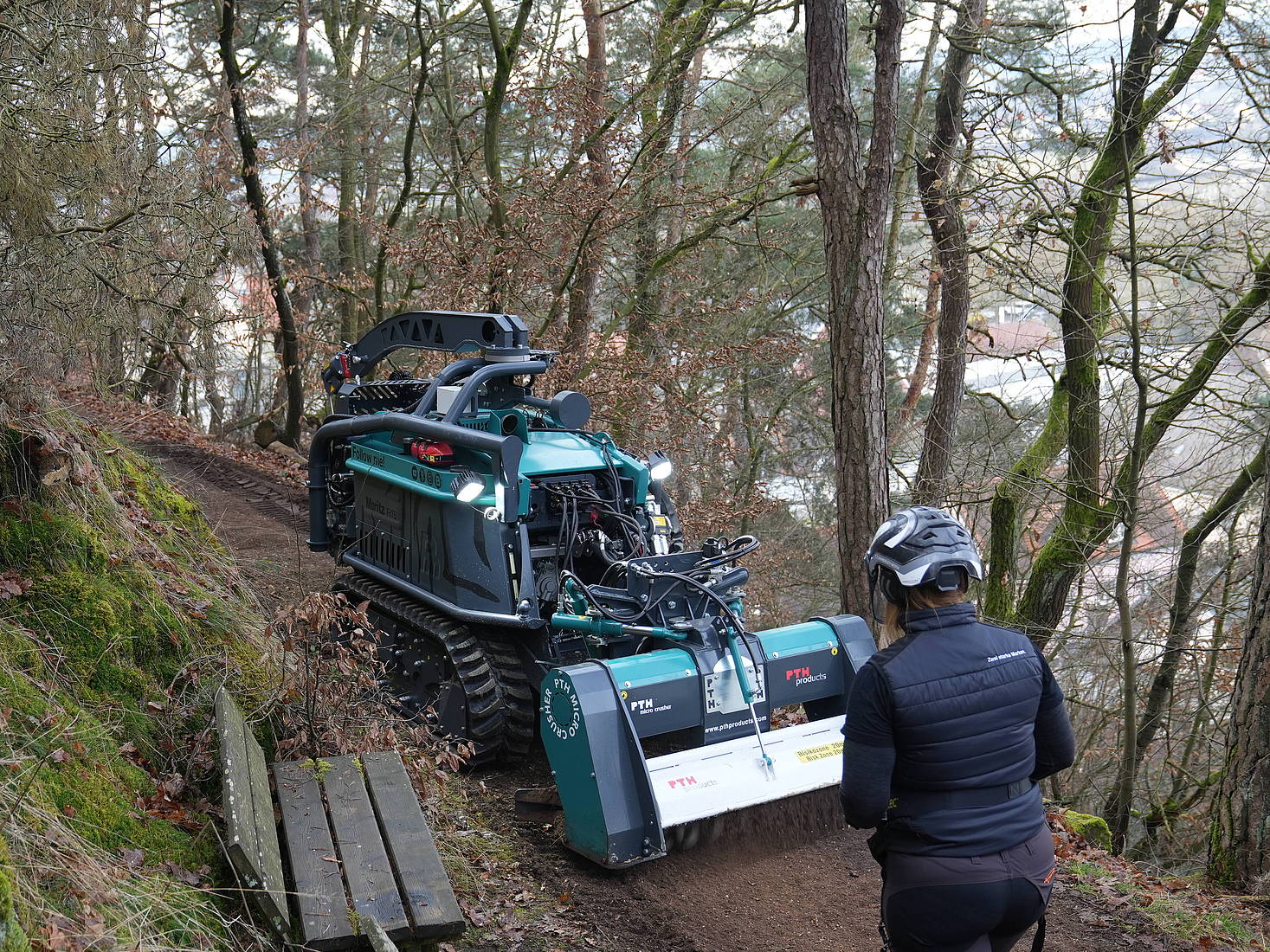

What makes the Moritz with trail mill a real revolution in the construction and maintenance of mountain bike trails?
Celine Blochberger – MTB coach, guide, and trail shaper (creates and maintains trails) – shares her practical experience and explains how the remote-controlled Moritz is redefining efficiency, precision, and sustainability in the mountains.
Technical details that impress:
Powerful and energy-efficient 4-cylinder engine with 36.4 or 55.4 kW and CLEANFIX reverse air fan
Large ground clearance of 320 mm
Optimal climbing ability thanks to 50° slope angle at the front and 40° at the rear
Proportional drive with two speed settings and a maximum speed of 6.0 km/h
Drift adjustment to compensate for the downhill force when mowing across slopes
Variable chassis for easy transport and perfect stability with automatically hydraulically tensioned double guide wheel
Low ground pressure of only 0.28 or 0.33 kg/cm²
Separate drive, on-board, and power hydraulics
Complete control of vehicle and attachment via radio
Areas of application
The Moritz demonstrates its versatility in alpine tourism: in the construction and renovation of hiking and biking trails, in the maintenance of ski slopes and protective structures, and in winter with a snow blower. Thanks to its traction cable winch, radio control, and wide range of attachments, it is the perfect tool for safe and efficient work on steep terrain.
Ski slope maintenance in summer
Ski slopes also need maintenance in summer: the Moritz is used here with a mulcher or cutter bar – gentle on the ground, efficient, and ideal for sensitive slopes. This keeps the infrastructure intact and ready for the next winter season.
Snow blowers
When clearing snow on ski slopes, the Moritz impresses with its maneuverability, traction cable winch, and powerful attachment blade. Even on the steepest terrain, it keeps paths clear – precisely, safely, and remotely controlled.
Trail construction/renovation
The Moritz is the ideal solution for constructing and renovating bike park trails: with the trail groomer, it forms precise lines and prepares the ground perfectly – efficiently, gently on the ground, and in the tightest of spaces. Trail construction/renovation
Hiking trail renovation
When renovating hiking trails, the Moritz ensures safe and family-friendly paths – even in difficult-to-access terrain. With its attached milling attachment, it shapes paths gently and precisely without damaging the surrounding nature.
Product specialist for alpine tourism regions and montain railways
You are interested in the Moritz Fr50, Fr70 or Fr75 multipurpose minitractor and keen to experience it live?
We would be delighted to showcase the vehicle as part of a presentation. Let us impress you with the performance of the Moritz — arrange your demonstration today!
Closed, proportional dual-circuit system, all movements can be controlled remotely, gradual driving speed adaptation, first speed stage 0-3 km/h, second speed stage 0-6 km/h Final speed can be gradually preselected, drift setting to compensate for the downgrade force when mowing across a slope, automatically hydraulically tensioned dual stator
Running gear
Caterpillar track running gear with rubber tracks in AS design (250 mm wide, 1,650 mm long) hydraulically adjustable in width
Running gear
Torsion-resistant box frame made of special steel, large, lockable storage bin integrated on the running gear Various attachment points for securing the tractor, Solid steel underbody protection housing, All-round branch deflectors with integrated hood protector
On-board hydraulics
Separate oil circuit with pump (18 l/min at 200 bar) One proportional control unit for hoist with water submersion position
Operation
Remote control for all functions (emergency stop, throttle adjustment of diesel engine, driving and steering, reversible fan, first and second gear, drift adjustment, optional hoist compensation, cable winch control, stacking shield up/down, water submersion position for hoisting mechanism, adjustable width, PTO on/off, auxiliary control valves, signal horn, lighting), cable winch operation/third-party consumers
Dimensions
Length 2,300 mm, width 1,150 mm/1,550 mm, height 1,350 mm, weight 1,400 kg
Length 2,300 mm, width 1,150 mm/1,550 mm, height 1,350 mm, weight 1,450 kg
You can find the extensive range of accessories in the configurator.
Configure your new Moritz
Select your model and desired accessories. You will receive the price for your desired configuration directly online. Use the configurator to request your personal quote.
If you have any questions, please do not hesitate to contact our sales consultants. FIND YOUR CONTACT PERSON
Closed, proportional dual-circuit system, all movements can be controlled remotely, gradual driving speed adaptation, first speed stage 0-3 km/h, second speed stage 0-6 km/h Final speed can be gradually preselected, drift setting to compensate for the downgrade force when mowing across a slope, automatically hydraulically tensioned dual stator
Running gear
Caterpillar track running gear with rubber tracks in AS design (250 mm wide, 1,650 mm long) hydraulically adjustable in width
Running gear
Torsion-resistant box frame made of special steel, large, lockable storage bin integrated on the running gear Various attachment points for securing the tractor, Solid steel underbody protection housing, All-round branch deflectors with integrated hood protector
On-board hydraulics
Separate oil circuit with pump (18 l/min at 200 bar) One proportional control unit for hoist with water submersion position
Operation
Remote control for all functions (emergency stop, throttle adjustment of diesel engine, driving and steering, reversible fan, first and second gear, drift adjustment, optional hoist compensation, cable winch control, stacking shield up/down, water submersion position for hoisting mechanism, adjustable width, PTO on/off, auxiliary control valves, signal horn, lighting), cable winch operation/third-party consumers
Dimensions
Length 2,300 mm, width 1,150 mm/1,550 mm, height 1,350 mm, weight 1,400 kg
Closed, proportional dual-circuit system, all movements can be controlled remotely, gradual driving speed adaptation, first speed stage 0-3 km/h, second speed stage 0-6 km/h Final speed can be gradually preselected, drift setting to compensate for the downgrade force when mowing across a slope, automatically hydraulically tensioned dual stator
Running gear
Caterpillar track running gear with rubber tracks in AS design (250 mm wide, 1,650 mm long) hydraulically adjustable in width
Running gear
Torsion-resistant box frame made of special steel, large, lockable storage bin integrated on the running gear Various attachment points for securing the tractor, Solid steel underbody protection housing, All-round branch deflectors with integrated hood protector
On-board hydraulics
Separate oil circuit with pump (18 l/min at 200 bar) One proportional control unit for hoist with water submersion position
Operation
Remote control for all functions (emergency stop, throttle adjustment of diesel engine, driving and steering, reversible fan, first and second gear, drift adjustment, optional hoist compensation, cable winch control, stacking shield up/down, water submersion position for hoisting mechanism, adjustable width, PTO on/off, auxiliary control valves, signal horn, lighting), cable winch operation/third-party consumers
Dimensions
Length 2,300 mm, width 1,150 mm/1,550 mm, height 1,350 mm, weight 1,400 kg
optionlist
Open itemsClose items
Name
Select
Track with a width of 300 mm (instead of 250 mm as standard)
LED working spotlights at the front and rear (tractor)
Roll bars
Auxiliary front cable winch
(requires additional DW control valve - not included in the price)
10 kN tractive force
Ø 6 mm x 30 m cable (max. 50 m)
Cable infeed roller and cable brake
Controlled using tractor’s remote control
Supply and return with freewheeling coupling
Deflection roller bottom for front auxiliary winch
Supplementary kit for bottom link mount Cat. I
Hoist compensation for rear hydraulics
Front power lift with a maximum lifting force of 7kN
double-action black/white control valve required
Tractor PTO transmission
Zero-maintenance, oil-cooled, multi-plate clutch that runs in an oil bath
PTO speed at transmission approximately 540 and 2,100 rpm.
Hydraulic top linkage
Performance hydraulics
Closed oil circuit with axial piston adjustment pump generating a maximum output of 48 kW
Gradually adjustable oil supply quantity 0 - 96 l
300 bar maximum pressure
with multicoupler (A+B+leak oil, 12V voltage)
Depressurised return with bracket
Proportional DW valve 2/1 (instead of 1/1 standard)
Proportional DW valve 3/1
Proportional DW valve 4/1
Black/white DW valve 1/2
Black/white DW valve 2/2
Fire-fighting version
Flashing beacon light mounted on a bracket and flasher in the bonnet, warning sticker, red paint
Chain curtain as splash guard
Transportbox
Excavation device – mechanical installation and removal aid for quick change of winch
Forestry mulcher MAX with hydraulic flap
Prerequisite: PTO shaft transmission and "2" additional DW control valves Recommendation: Hydraulic top link for forestry mulcher
Mechanically driven via power take-off shaft, with hydraulic flap, optimised reshredding by counterknives in the flap, mechanical lateral displacement, hydraulic pusher device for use in high branch material, wide skids and optimised geometry, cutting depth adjustment via hydraulic top link (hydraulically Top link option), 40 carbide-tipped round bits, can be used on three sides (by turning the bit), spirally arranged, tool flight circle diameter 340 mm, power requirement from 20 kW with cardan shaft
Lateral hydraulic adjustment for forestry cutter MAX
Prerequisite: PTO transmission and additional DW control valve
Mulcher 120
Prerequisite: PTO transmission and additional DW control valve
Working width 120 cm
Three-point linkage, cutting rotor with 24 flail hammers type 21, Single oil bath transmission with integrated freewheel for 540 rpm PTO anticlockwise (front), skids, support roller with 140 mm diameter, CE protective equipment with mechanical lateral displacement (approx. 400 mm), Flap (for stationary rotor cleaning), propshaft
Lateral hydraulic adjustment for Mulcher 120
Prerequisite: Control valve DW
Recommendation: Hydraulic top link for forestry mulcher
Hydraulic cylinder for hydraulic flap for mulcher 120
Prerequisite: additional DW control valve
Mulcher 135
Prerequisite: PTO transmission
working width: 135 cm
Single-gear oil bath transmission with integrated freewheel for 540 rpm PTO, front protective guards, adjustable belt tension, flail hammer type 08 lower counter blade, support roller with 170 mm diameter, propshaft
Strip cutting machine
Prerequisite: PTO transmission
200 mm mulching depth, mechanically driven by PTO, V-shaped trenches (width at the top: 200, width at the bottom: 20 mm), hard-metal teeth featuring Cardan shaft
Sowing module with bunker
(in conjunction with strip mulcher only)
Separate bunkers for coarse sowing with a capacity of approximately 55 l and fine sowing with a capacity of 10 l, electrically adjustable sowing frequency, automatic deactivation of the sowing unit when the vehicle is at standstill, Makrolon lid as sight glass
Planter Plantomat
Operation via Moritz radio control
Automated planting process
Tilling wheel for preparing the planting site
Magazine for 50 container plants
Hydraulically driven traction winch
Hydraulically driven traction winch for securing the crawler on steep and difficult terrain, and for minimising ground damage.
Rope infeed with rope infeed roller rotating on all sides, mounted on the vertically mounted rotation arm, so that the vehicle is not hindered by the tensioned traction rope and all directions of travel can be freely selected.
The vehicle is not hindered by the tensioned traction cable and all directions of travel can be freely selected,
Tractive force infinitely variable up to approx. 11 KN via potentiometer on the caterpillar radio.
Hydraulic winch drive with mech. emergency stop device
Rope length up to 1.000 m
Winch with rope distribution device
Winch can also be used in conjunction with mechanically driven three-point equipment, e.g. mulcher, forestry tiller, etc.
Stump grinder for the Max forestry tiller
Left and right hydraulic support (parallel)
Lateral swivelling via a cylinder, with speed throttle, swivel radius +/- 45 degrees
Hydraulic height adjustment – maximum working depth at 620 mm below the setup area Clear excavation height under milling wheel approx. +930 mm
Hydraulic forward and backward adjustment of the swivel arm
Milling wheel diameter approx. 600 mm (24 carbide tipped round chisels, can be used on three sides)
Side and rear splinter protection apron
Weight: approx. 370 kg
Personal protection screen
Stone grinder for road construction
Stone grinder construction & renovation hiking trails & bike trails
Transport frame for Moritz
Cable winch units
Open itemsClose items
Name
Select
Without cable winch
Hydraulic cable winch, 50 kN tractive force
Prerequisite: Performance hydraulics
Prerequisite: Performance hydraulics
Worm gear drive: power transferred to the cable drums using hydraulically operated multi-plate clutches
Tractive force 50 kN
Max. cable capacity 110 m x 11 mm
Average cable speed (hydr.) 0.40 m/s
Multi-plate brake
Sintered disc clutch
Electr. solenoid valve control (wet armature)
Stacking shield: - Hydraulically height-adjustable with pressing function - Cable roll adapts to height - Lifting capacity at leveller: 14kN - Shield width approx. 1100 mm - K 50 attachment jaw and combination bolt (ball-type design)
Hydraulic cable winch, 50 kN tractive force with cable infeed brake
Prerequisite: Performance hydraulics
Prerequisite: Performance hydraulics
Worm gear drive: power transferred to the cable drums using hydraulically operated multi-plate clutches
Tractive force 50 kN
Max. cable capacity 110 m x 11 mm
Average cable speed (hydr.) 0.40 m/s
Multi-plate brake
Sintered disc clutch
Electr. solenoid valve control (wet armature)
Stacking shield: - Hydraulically height-adjustable with pressing function - Cable roll adapts to height - Lifting capacity at leveller: 14kN - Shield width approx. 1100 mm - K 50 attachment jaw and combination bolt (ball-type design)
Swivel pulley with cable brake
Hydraulic cable winch, 60 kN tractive force
Prerequisite: Performance hydraulics
Worm gear drive: power transferred to the cable drums using hydraulically operated multi-plate clutches
Force 60 kN
Cable capacity 110 m x 11 mm
Average cable speed (hydr.) 0.40 m/s
Multi-plate brake
Sintered disc clutch
Electr. solenoid valve control (wet armature)
Stacking shield: - Hydraulically height-adjustable with pressing function - Cable roll adapts to height - Lifting capacity at leveller: 14kN - Shield width approx. 1100 mm - K 50 attachment jaw and combination bolt (ball-type design)
Hydraulic cable winch, 60 kN tractive force with cable infeed brake
Prerequisite: Performance hydraulics
Worm gear drive: power transferred to the cable drums using hydraulically operated multi-plate clutches
Force 60 kN
Cable capacity 110 m x 11 mm
Average cable speed (hydr.) 0.40 m/s
Multi-plate brake
Sintered disc clutch
Electr. solenoid valve control (wet armature)
Stacking shield: - Hydraulically height-adjustable with pressing function - Cable roll adapts to height - Lifting capacity at leveller: 14kN - Shield width approx. 1100 mm - K 50 attachment jaw and combination bolt (ball-type design)
Swivel pulley with cable brake
Hydraulic cable winch, 72 kN tractive force
Prerequisite: Performance hydraulics
Worm gear drive: power transferred to the cable drums using hydraulically operated multi-plate clutches
Force 72 kN
Cable capacity 90 m x 12 mm
Average cable speed (hydr.) 0.40 m/s
Multi-plate brake
Sintered disc clutch
Electr. solenoid valve control (wet armature)
Stacking shield: - Hydraulically height-adjustable with pressing function - Cable roll adapts to height - Lifting capacity at leveller: 14kN - Shield width approx. 1100 mm - K 50 attachment jaw and combination bolt (ball-type design)
Hydraulic cable winch, 72 kN tractive force with cable infeed brake
Prerequisite: Performance hydraulics
Worm gear drive: power transferred to the cable drums using hydraulically operated multi-plate clutches
Force 72 kN
Cable capacity 90 m x 12 mm
Average cable speed (hydr.) 0.40 m/s
Multi-plate brake
Sintered disc clutch
Electr. solenoid valve control (wet armature)
Stacking shield: - Hydraulically height-adjustable with pressing function - Cable roll adapts to height - Lifting capacity at leveller: 14kN - Shield width approx. 1100 mm - K 50 attachment jaw and combination bolt (ball-type design)
Swivel pulley with cable brake
Winch accessories range
Open itemsClose items
Name
Select
Without cable
Special forestry rope, 11 mm dia. - 70 m
Special forestry rope, 11 mm dia. - 110 m
Special forestry rope, 12 mm dia. - 60 m
Special forestry rope, 12 mm dia. - 90 m
Dyneema XTR, 12 mm dia. - 70 m
Dyneema XTR, 12 mm dia. - 90 m
optionlist
Open itemsClose items
Name
Select
Track with a width of 300 mm (instead of 250 mm as standard)
LED working spotlights at the front and rear (tractor)
Roll bars
Auxiliary front cable winch
(requires additional DW control valve - not included in the price)
10 kN tractive force
Ø 6 mm x 30 m cable (max. 50 m)
Cable infeed roller and cable brake
Controlled using tractor’s remote control
Supply and return with freewheeling coupling
Deflection roller bottom for front auxiliary winch
Supplementary kit for bottom link mount Cat. I
Hoist compensation for rear hydraulics
Front power lift with a maximum lifting force of 7 kN
double-action black/white control valve required
Tractor PTO transmission
Zero-maintenance, oil-cooled, multi-plate clutch that runs in an oil bath
PTO speed at transmission approximately 540 and 2,100 rpm.
Hydraulic top linkage
Performance hydraulics
Closed oil circuit with axial piston adjustment pump generating a maximum output of 48 kW
Gradually adjustable oil supply quantity 0 - 96 l
300 bar maximum pressure
with multicoupler (A+B+leak oil, 12V voltage)
Depressurised return with bracket
Proportional DW valve 2/1 (instead of 1/1 standard)
Proportional DW valve 3/1
Proportional DW valve 4/1
Black/white DW valve 1/2
Black/white DW valve 1/2 2/2
Fire-fighting version
Flashing beacon light mounted on a bracket and flasher in the bonnet, warning sticker, red paint
Chain curtain as splash guard
Transport box
Excavation device – mechanical installation and removal aid for quick change of winch
Forestry mulcher MAX with hydraulic flap
Prerequisite: PTO shaft transmission and "2" additional DW control valves Recommendation: Hydraulic top link for forestry mulcher
Mechanically driven via power take-off shaft, with hydraulic flap, optimised reshredding by counterknives in the flap, mechanical lateral displacement, hydraulic pusher device for use in high branch material, wide skids and optimised geometry, cutting depth adjustment via hydraulic top link (hydraulically Top link option), 40 carbide-tipped round bits, can be used on three sides (by turning the bit), spirally arranged, tool flight circle diameter 340 mm, power requirement from 20 kW with cardan shaft
Lateral hydraulic adjustment for forestry cutter MAX
Prerequisite: PTO transmission and additional DW control valve
Lateral hydraulic adjustment for MAX forestry mulcher
Prerequisite: Control valve DW
Recommendation: Hydraulic top link for forestry mulcher
Mulcher 120
Prerequisite: PTO transmission and additional DW control valve
working width: 120 cm
Three-point linkage, cutting rotor with 24 flail hammers type 21, Single oil bath transmission with integrated freewheel for 540 rpm PTO anticlockwise (front), skids, support roller with 140 mm diameter, CE protective equipment with mechanical lateral displacement (approx. 400 mm), Flap (for stationary rotor cleaning), propshaft
Hydraulic cylinder for hydraulic flap for mulcher 120
Prerequisite: additional DW control valve
Mulcher 135
Prerequisite: PTO transmission
working width: 135 cm
Single-gear oil bath transmission with integrated freewheel for 540 rpm PTO, front protective guards, adjustable belt tension, flail hammer type 08 lower counter blade, support roller with 170 mm diameter, propshaft
Strip cutting machine
Prerequisite: PTO transmission
200 mm mulching depth, mechanically driven by PTO, V-shaped trenches (width at the top: 200, width at the bottom: 20 mm), hard-metal teeth featuring Cardan shaft
Sowing module with bunker
(in conjunction with strip mulcher only)
Separate bunkers for coarse sowing with a capacity of approximately 55 l and fine sowing with a capacity of 10 l, electrically adjustable sowing frequency, automatic deactivation of the sowing unit when the vehicle is at standstill, Makrolon lid as sight glass
Planter Plantomat
Operation via Moritz radio control
Automated planting process
Tilling wheel for preparing the planting site
Magazine for 50 container plants
Hydraulically driven traction winch
Hydraulically driven traction winch for securing the crawler on steep and difficult terrain, and for minimising ground damage.
Rope infeed with rope infeed roller rotating on all sides, mounted on the vertically mounted rotation arm, so that the vehicle is not hindered by the tensioned traction rope and all directions of travel can be freely selected.
The vehicle is not hindered by the tensioned traction cable and all directions of travel can be freely selected,
Tractive force infinitely variable up to approx. 11 KN via potentiometer on the caterpillar radio.
Hydraulic winch drive with mech. emergency stop device
Rope length up to 1.000 m
Winch with rope distribution device
Winch can also be used in conjunction with mechanically driven three-point equipment, e.g. mulcher, forestry tiller, etc.
Stump grinder for the Max forestry tiller
Left and right hydraulic support (parallel)
Lateral swivelling via a cylinder, with speed throttle, swivel radius +/- 45 degrees
Hydraulic height adjustment – maximum working depth at 620 mm below the setup area Clear excavation height under milling wheel approx. +930 mm
Hydraulic forward and backward adjustment of the swivel arm
Milling wheel diameter approx. 600 mm (24 carbide tipped round chisels, can be used on three sides)
Side and rear splinter protection apron
Weight: approx. 370 kg
Personal protection screen
Stone grinder for road construction
Stone grinder Construction and renovation of hiking trails and bike trails
Transport frame for Moritz
Chargeable for shipment
Cable winch units
Open itemsClose items
Name
Select
Without cable winch
Hydraulic cable winch, 50 kN tractive force
Prerequisite: Performance hydraulics
Prerequisite: Performance hydraulics
Worm gear drive: power transferred to the cable drums using hydraulically operated multi-plate clutches
Tractive force 50 kN
Max. cable capacity 110 m x 11 mm
Average cable speed (hydr.) 0.40 m/s
Multi-plate brake
Sintered disc clutch
Electr. solenoid valve control (wet armature)
Stacking shield: - Hydraulically height-adjustable with pressing function - Cable roll adapts to height - Lifting capacity at leveller: 14kN - Shield width approx. 1100 mm - K 50 attachment jaw and combination bolt (ball-type design)
Hydraulic cable winch, 50 kN tractive force with cable infeed brake
Prerequisite: Performance hydraulics
Prerequisite: Performance hydraulics
Worm gear drive: power transferred to the cable drums using hydraulically operated multi-plate clutches
Tractive force 50 kN
Max. cable capacity 110 m x 11 mm
Average cable speed (hydr.) 0.40 m/s
Multi-plate brake
Sintered disc clutch
Electr. solenoid valve control (wet armature)
Stacking shield: - Hydraulically height-adjustable with pressing function - Cable roll adapts to height - Lifting capacity at leveller: 14kN - Shield width approx. 1100 mm - K 50 attachment jaw and combination bolt (ball-type design)
Swivel pulley with cable brake
Hydraulic cable winch, 60 kN tractive force
Prerequisite: Performance hydraulics
Worm gear drive: power transferred to the cable drums using hydraulically operated multi-plate clutches
Force 60 kN
Cable capacity 110 m x 11 mm
Average cable speed (hydr.) 0.40 m/s
Multi-plate brake
Sintered disc clutch
Electr. solenoid valve control (wet armature)
Stacking shield: - Hydraulically height-adjustable with pressing function - Cable roll adapts to height - Lifting capacity at leveller: 14kN - Shield width approx. 1100 mm - K 50 attachment jaw and combination bolt (ball-type design)
Hydraulic cable winch, 60 kN tractive force with cable infeed brake
Prerequisite: Performance hydraulics
Worm gear drive: power transferred to the cable drums using hydraulically operated multi-plate clutches
Force 60 kN
Cable capacity 110 m x 11 mm
Average cable speed (hydr.) 0.40 m/s
Multi-plate brake
Sintered disc clutch
Electr. solenoid valve control (wet armature)
Stacking shield: - Hydraulically height-adjustable with pressing function - Cable roll adapts to height - Lifting capacity at leveller: 14kN - Shield width approx. 1100 mm - K 50 attachment jaw and combination bolt (ball-type design)
Swivel pulley with cable brake
Hydraulic cable winch, 72 kN tractive force
Prerequisite: Performance hydraulics
Worm gear drive: power transferred to the cable drums using hydraulically operated multi-plate clutches
Force 72 kN
Cable capacity 90 m x 12 mm
Average cable speed (hydr.) 0.40 m/s
Multi-plate brake
Sintered disc clutch
Electr. solenoid valve control (wet armature)
Stacking shield: - Hydraulically height-adjustable with pressing function - Cable roll adapts to height - Lifting capacity at leveller: 14kN - Shield width approx. 1100 mm - K 50 attachment jaw and combination bolt (ball-type design)
Hydraulic cable winch, 72 kN tractive force with cable infeed brake
Prerequisite: Performance hydraulics
Worm gear drive: power transferred to the cable drums using hydraulically operated multi-plate clutches
Force 72 kN
Cable capacity 90 m x 12 mm
Average cable speed (hydr.) 0.40 m/s
Multi-plate brake
Sintered disc clutch
Electr. solenoid valve control (wet armature)
Stacking shield: - Hydraulically height-adjustable with pressing function - Cable roll adapts to height - Lifting capacity at leveller: 14kN - Shield width approx. 1100 mm - K 50 attachment jaw and combination bolt (ball-type design)
